- Model: 690 Air White

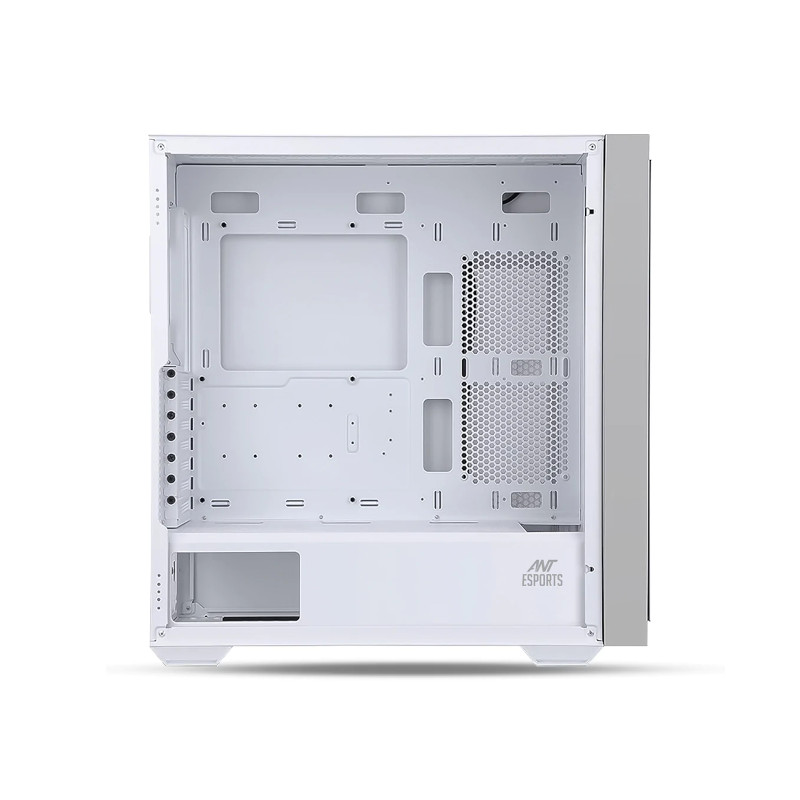

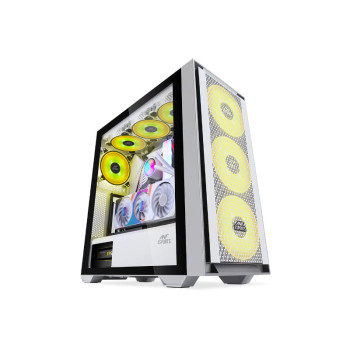

Ant Esports 690 Air ARGB (E-ATX) Cabinet (White)
- Multiple Radiator Mounts – For
enthusiast-grade cooling dual 360-millimetre radiators are supported on the top
and front panel while a single 240mm is supported on the side to keep the most
extreme systems cool.
- Large Storage Options – With Dual 2.5” SSD
mounts and dual 3.5” HDD mounts the Ant Esports 690 Air is ideal to build any
gaming or production system.
- Movable Disk Bracket – The HDD cage under
the PSU shroud is movable and can be slid towards the front to make space for
long PSUs and increase it to 220mm if needed.
- Spacious Interiors – The spacious interior
fits up to an E-ATX motherboard configuration. Support for up to a 390mm
graphics card, a 175mm CPU cooler, and up to a 220mm PSU in length provides
room for upgrades.
- Four Dust Filters – With magnetic dust
filters in the front, side, and top along with a pull tray one on the PSU, the
690 Air facilitates high airflow while filtering out dust particles.
The Ant Esports 690 Air is a gaming cabinet
delivering high-end premium features at a pocket-friendly price tag. The case
supports up to E-ATX motherboards, multiple storage drives, and liquid coolers
up to 360mm on top making it ideal for high-end gaming or production systems.

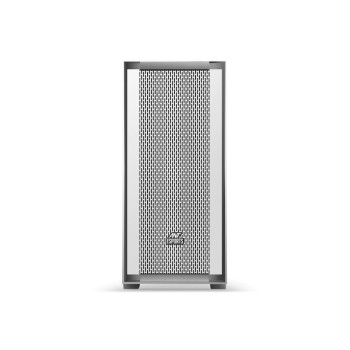

With a front mesh panel with a magnetic dust filter and a direct airflow path
the Ant Esports 690 Air not only keeps high-end gaming hardware cool under load
but also prevents dust accumulation.
The 690 Air not only supports a massive
360mm radiator on top for a thermally perfect build but also has space for a
240mm radiator on the side so one can choose the amount of their choice and
even install multiple radiators at the same time if needed. In terms of
storage, the case supports two dedicated 2.5” SSD mounts one dedicated 3.5” HDD
drive, and one swappable SSD or HDD mount totaling four storage drive mounts.
The case comes with a dual SSD and a single HDD mount along with one swappable
mount for SSD/HDD to provide enough storage for your gaming or production PCs.
For enthusiast-grade systems or cooling
setups, the Ant Esports 690 Air supports up to dual 360mm radiators in the
front and on top while the side 240mm radiator mount not only lets one opt for
custom loop cooling but even uses graphics cards with AIO coolers is now
possible. CPU Air Cooler clearance of up to 175mm ensures installation of
massive air coolers with ease and the 220mm PSU clearance under the PSU shroud
makes the 690 Air gaming cabinet the perfect gaming case to build power-hungry
systems in.
Specification |
|
Model |
690-AIR-WHITE |
Color |
White |
Dimensions |
Chassis Size: 421 x 221 x 470 mm Packing Size: 572 x 322 x 575 mm |
Motherboard Type |
E-ATX, ATX, Micro-ATX, Mini ITX |
Drive Bays |
3.5 Inch: x 2 2.5 Inch: x 2 5.25 Inch: Non |
Fan Support |
Front: 120/140 mm x 3 Top: 120mm x 3/ 140mm x 2 Bottom: 120mm x 2 Rear: 120mm x 1 Side: 120mm x 2 |
Liquid Cooling Support(Maximum) |
Front: 120/240/280/360 mm Rear: 120mm Top: 120/240/280/360 mm |
Pre-Installed Fans Pre-Installed
Fans |

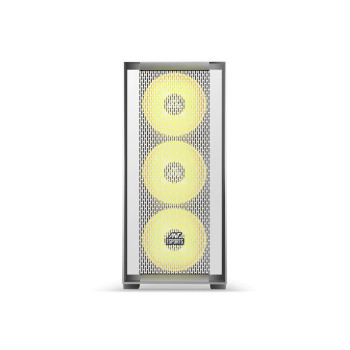

Front: x 3 ARGB Fans |
Compatibility(Maximum) |
VGA Card Length: 390mm CPU Cooler Height: 175m |
I/O Panel |
2x USB 3.0, 1x Audio In, 1x Mic,
LED Control Button |
Expansion Slots |
7 |
Warranty |
1 Year |
Note* |
Price, feature and
specifications are subject to change without notice |
