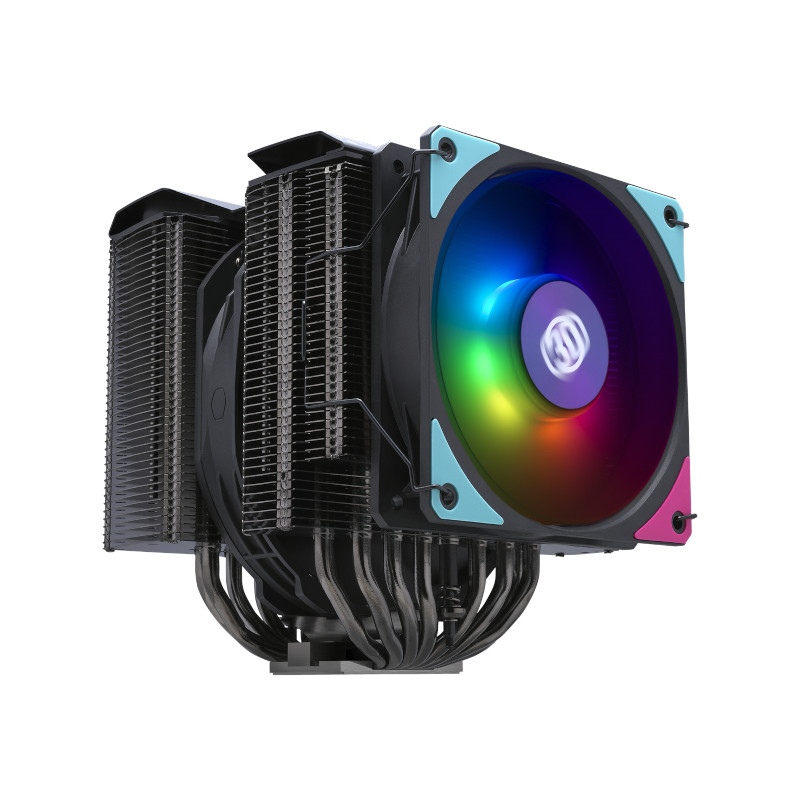

Model

MAM-D8PN-318PK-30

Series

MasterAir

Cooler Type

Air Cooler

Exterior Color

Black

CPU Socket

LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4

Dimensions (L x W x H)

162.2 x 150.6 x 165.6 mm / 6.4 x 5.9 x 6.5 inch

Heat Sink Material

8 Heat Pipes, Aluminum Fins

Fan Dimensions (L x W x H)

135mm Fan: 135 x 135 x 26 mm,

120mm Fan: 120 x 120 x 25 mm

Fan Profiles

135mm Fan: Non-Led, 120mm Fan: Addressable Gen 2 RGB

Fan Quantity

1 PC

Fan Speed

135mm Fan: 0-1550 RPM ± 15%, 120mm Fan: 0-2400 RPM ± 15%

Fan Airflow

135mm Fan: 63.6 CFM (Max), 120mm Fan: 75.2 CFM (Max)

Fan Pressure

135mm Fan: 1.92 mmH₂O, 120mm Fan: 3.63 mmH₂O

Fan MTTF

>200,000 Hours

Fan Noise Level

135mm Fan: 24.6 dBA (Max), 120mm Fan: 30 dBA (Max)

Fan Bearing Type

Loop Dynamic Bearing

Fan Power Connector

4-Pin (PWM)

Fan Rated Voltage

12 VDC

Fan Rated Current

135mm Fan: 0.1 A, 120mm Fan: 0.18 A

Fan Safety Current

135mm Fan: 0.25A, 120mm Fan: 0.35A

Fan Power Consumption

135mm Fan: 1.2-2.4W, 120mm Fan: 2.16W

Heatpipes

8

Warranty

5 years

Note*

Price, feature and specifications are subject to change without notice
