- Model: MCB-D500D-WGNN-S01

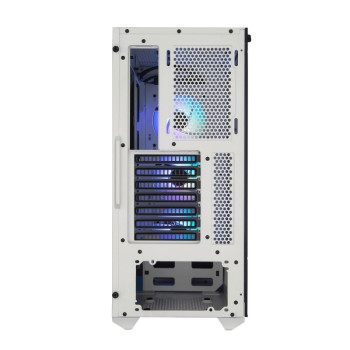

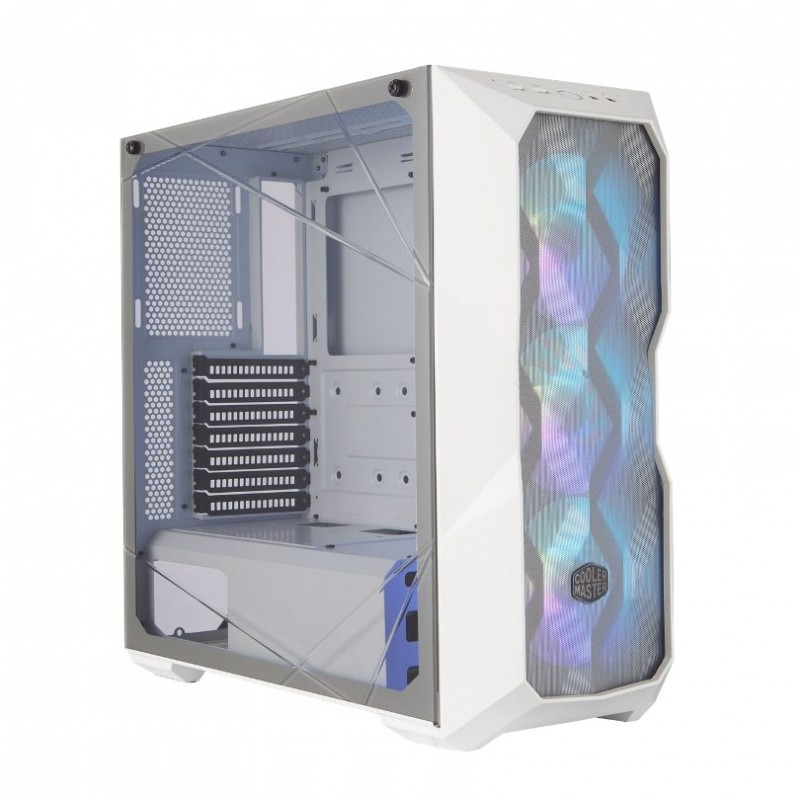

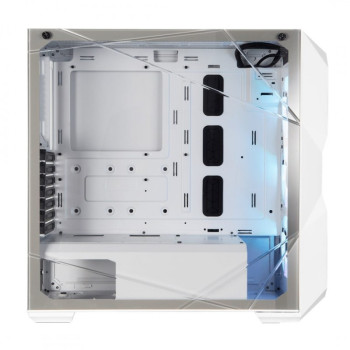

MASTERBOX TD500 MESH / MESH WHITE
EXQUISITELY RUTHLESS
- Polygonal Mesh
- Crystalline Tempered Glass
- Triple ARGB Fans
- Dual 360mm Radiator Support
- Versatile Cooling Options
- Room For Upgrades
|
Specification |
|
|
Model |
MCB-D500D-WGNN-S01 |
|
AVAILABLE COLOR |
Black, White |
|
MATERIALS |
Steel, Plastic, Tempered Glass, Mesh |
|
DIMENSIONS (L X W X H) |
493 x 217 x 469mm (incl. Protrusions), 429.5 x 205x 447mm (excl. Protrusions) |
|
WEIGHT |
6.95 kg |
|
MOTHERBOARD SUPPORT |
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features) |
|
EXPANSION SLOTS |
9+2 |
|
DRIVE BAYS |
5.25" DRIVE BAYS = N/A 2.5" / 3.5" DRIVE BAYS (COMBO) = 2 2.5" DRIVE BAYS = 4 (2+2 combo) |
|
I/O PANEL |
2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller (only for the S01 versions), 1x ARGB 2-to-3 splitter |
|
PRE-INSTALLED FANS |
PRE-INSTALLED FANS – TOP = N/A PRE-INSTALLED FANS – FRONT = 3x 120mm ARGB Fans PRE-INSTALLED FANS – REAR = N/A |
|
FAN SUPPORT |
FAN SUPPORT – TOP = 3x 120mm, 2x 140mm FAN SUPPORT – FRONT = 3x 120mm, 2x 140mm FAN SUPPORT – REAR = 1x 120mm |
|
RADIATOR SUPPORT |
RADIATOR SUPPORT – TOP = 120mm, 240mm, 360mm, (44mm max motherboard component height) RADIATOR SUPPORT – FRONT = 120mm, 140mm, 240mm, 280mm, 360mm RADIATOR SUPPORT – REAR = 120mm |
|
CLEARANCE |
CLEARANCE - CPU COOLER = 165mm/6.49" CLEARANCE – PSU = 180mm/7.08", 295mm/11.61" (w/ HDD cage removed) CLEARANCE – GFX = 410mm/16.1" |
|
DUST FILTERS |
Top, Bottom, Front |
|
CABLE ROUTING |
19mm/0.74" |
|
POWER SUPPLY SUPPORT |
Bottom mount, ATX |
|
SERIES |
MasterBox Series |
|
SIZE |
Mid Tower |
|
Warranty |
2 Years |
|
Note* |
Price, feature and specifications
are subject to change without notice. |
