- Model: DP-GS-H12W-CSL240EX-AR

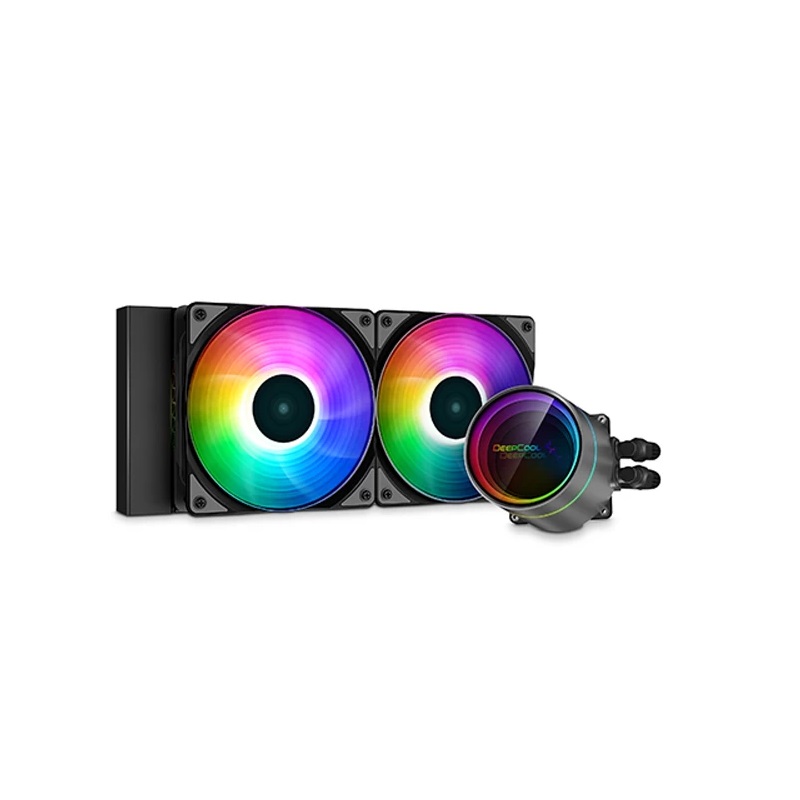

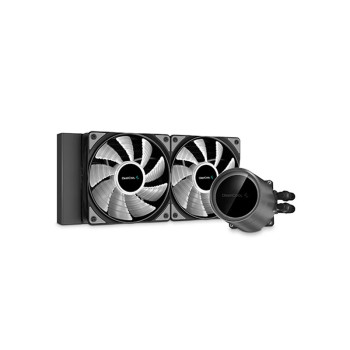

CASTLE 240EX A-RGB
DP-GS-H12W-CSL240EX-AR
Features
- 5V Addressable RGB with motherboard software support
- Two DeepCool CF120 series PWM fans output brilliant color and deliver great airflow performance
- Efficient pump design optimized for performance and noise
- Large copper cold plate with 25% more skived fins (Supports TR4)
- Anti-Leak Technology
- Swappable custom logo
Application For
Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD sTRX4/sTR4/AM5/AM4
|
Specification |
|
|
Model |
CASTLE 240EX A-RGB |
|
P/N |
DP-GS-H12W-CSL240EX-AR |
|
Radiator Dimensions |
282×120×27 mm |
|
Radiator Material |
Aluminum |
|
Net Weight |
1380 g |
|
Tube length |
380 mm |
|
Pump Dimensions |
86×75×71 mm |
|
Pump Speed |
2550 RPM±10% |
|
Pump Noise |
17.8 dB(A) |
|
Pump Connector |
3-pin |
|
Pump Rated Voltage |
12 VDC |
|
Pump Rated Current |
0.2 A |
|
Pump Power Consumption |
2.4 W |
|
Fan Dimensions |
120×120×25 mm |
|
Fan Speed |
500~1800 RPM±10% |
|
Fan Airflow |
69.34 CFM |
|
Fan Air Pressure |
2.42 mmAq |
|
Fan Noise |
≤30 dB(A) |
|
Fan Connector |
4-pin PWM |
|
Bearing Type |
Hydro Bearing |
|
Fan Rated Voltage |
12 VDC |
|
Fan Rated Current |
0.17 A |
|
Fan Power Consumption |
2.04 W |
|
LED Type |
Addressable RGB LED |
|
LED Connector |
3-pin(+5V-D-G) |
|
LED Rated Voltage |
5 VDC |
|
LED Power Consumption |
2.25 W（PUMP）/ 4.4 W（FAN×2） |
|
Warranty |
3 Years |
|
Note* |
Price, feature and specifications
are subject to change without notice. |
