Model

CASTLE 360EX A-RGB

P/N

DP-GS-H12W-CSL360EX-AR

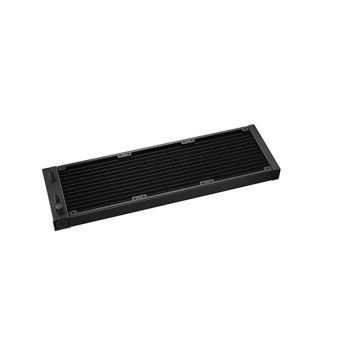

Radiator Dimensions

402×120×27 mm

Radiator Material

Aluminum

Net Weight

1665 g

Tube length

465 mm

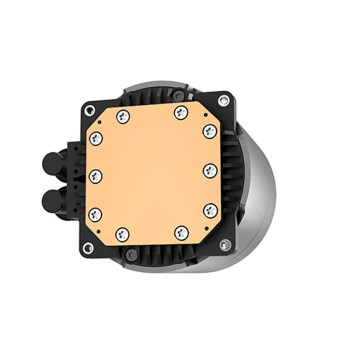

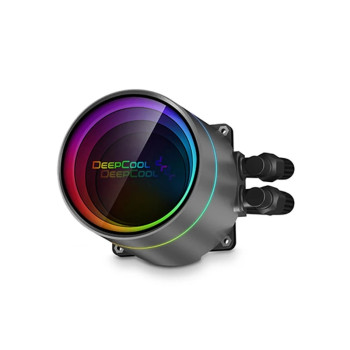

Pump Dimensions

86×75×71 mm

Pump Speed

2550 RPM±10%

Pump Noise

17.8 dB(A)

Pump Connector

3-pin

Pump Rated Voltage

12 VDC

Pump Rated Current

0.2 A

Pump Power Consumption

2.4 W

Fan Dimensions

120×120×25 mm

Fan Speed

500~1800 RPM±10%

Fan Airflow

69.34 CFM

Fan Air Pressure

2.42 mmAq

Fan Noise

≤30 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Hydro Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.17 A

Fan Power Consumption

2.04 W

LED Type

Addressable RGB LED

LED Connector

3-pin(+5V-D-G)

LED Rated Voltage

5 VDC

LED Power Consumption

2.25 W（PUMP）/6.6 W（FAN×3）

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
