Application For

Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD: sTRX4/sTR4/AM5/AM4

Model

R-LS520-WHAMNT-G-1

Net Weight

1305 g

Radiator Dimensions

282×120×27 mm

Radiator Material

Aluminum

Tube length

410 mm

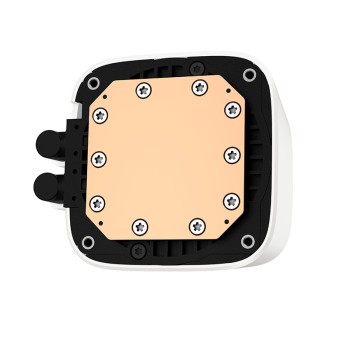

Pump Dimensions

86×74×57 mm

Pump Speed

3100 RPM±10%

Pump Noise

19 dB(A)

Pump Connector

3-pin

Pump Rated Voltage

12 VDC

Pump Rated Current

0.47 A

Pump Power Consumption

5.64 W

Fan Dimensions

120×120×25 mm

Fan Speed

500~2250 RPM±10%

Fan Airflow

85.85 CFM

Fan Air Pressure

3.27 mmAq

Fan Noise

≤32.9 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Fluid Dynamic Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.29 A

Fan Power Consumption

3.48 W

LED Type

Addressable RGB LED

LED Connector

3-pin(+5V-D-G)

LED Rated Voltage

5 VDC

LED Power Consumption

2.2 W（PUMP）/ 3.6 W（FAN×2）

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
