CPU

Supports AMD Ryzen 8000/ 7000 Series Desktop Processors

Chipset

AMD B650

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO™

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5400+ MHz

Expansion Slots

1x PCI-E x16 slot

• Supports x16 (For Ryzen™ 7000 Series processors)

• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)

• Supports x4 (For Ryzen™ 5 8500G processor)

2x PCI-E x1 slot

PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Onboard Graphics

1x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, the maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Storage

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices

4x SATA 6G

• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Rear)

1x USB 3.2 Gen2 Type C (Front)

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

LAN

Realtek® RTL8125BG 2.5Gbps LAN

WIRELESS / BLUETOOTH

AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Internal Connectors

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

3x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

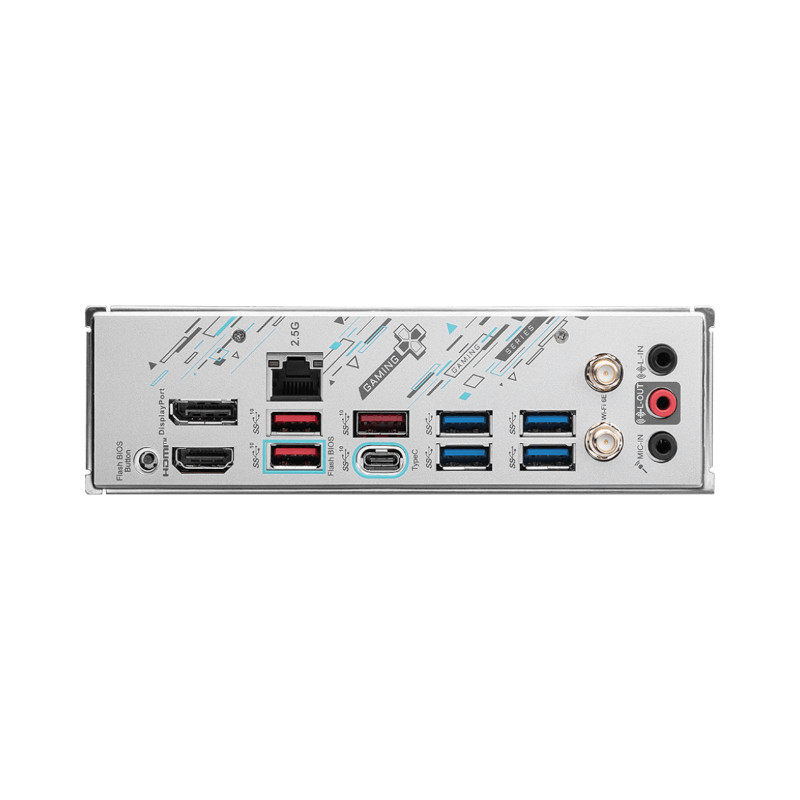

Back Panel Ports

DisplayPort

2.5G LAN

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 1 5Gbps (Type-A)

Wi-Fi / Bluetooth

Flash BIOS Button

HDMI™

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-C)

Audio connectors

LED FEATURE

4x EZ Debug LED

Dimensions

Support for Windows® 11 64-bit, Windows® 10 64-bit

Operating System

mATX

243.84mmx243.84mm

Warranty

3 Years

Note*

Price, features, and specifications are subject to change without notice.
