CPU

Supports AMD Ryzen™ 7000 Series Desktop Processors

Socket AM5

Chipset

AMD B650

Memory

4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

Expansion Slots

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Onboard Graphics

1x HDMI™

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Supports DP1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

MULTI-GPU

AMD MULTI-GPU Support

Storage

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

RAID

Supports RAID 0 and RAID 1 for SATA storage devices*

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

LAN

Realtek® 8125BG 2.5G LAN

WIRELESS / BLUETOOTH

AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Internal Connectors

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

4x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

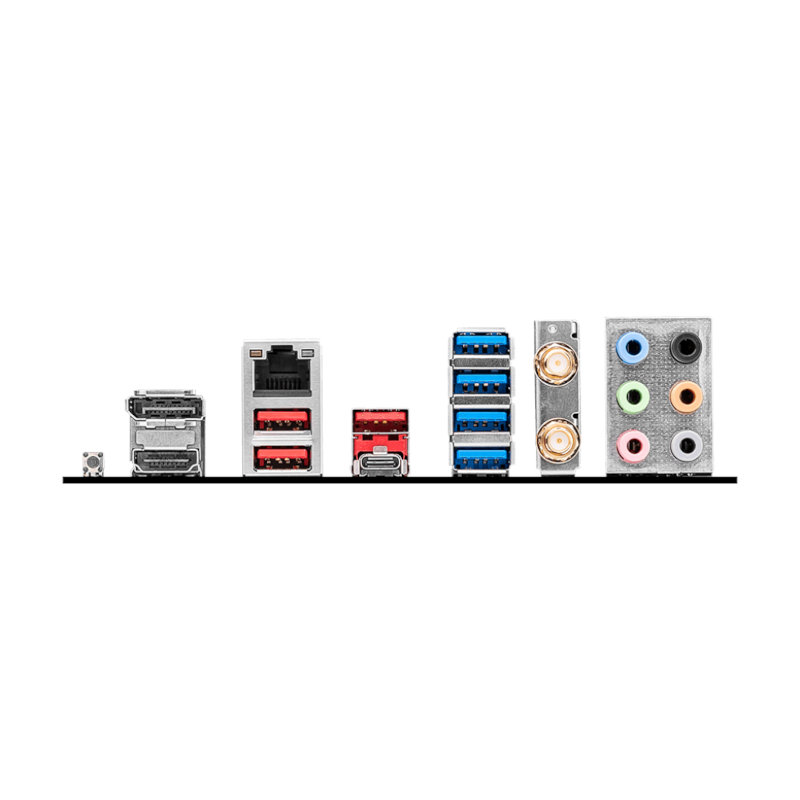

Back Panel Ports

DisplayPort

2.5G LAN

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 1 5Gbps (Type-A)

Wi-Fi / Bluetooth

Audio connectors

Flash BIOS Button

HDMI™

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 2x2 20Gbps (Type-C)

LED FEATURE

4x EZ Debug LED

Dimensions

ATX

243.84mmx304.8mm

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
