Model

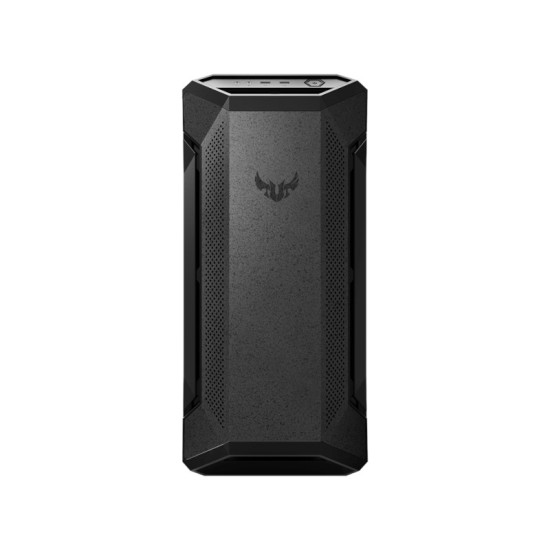

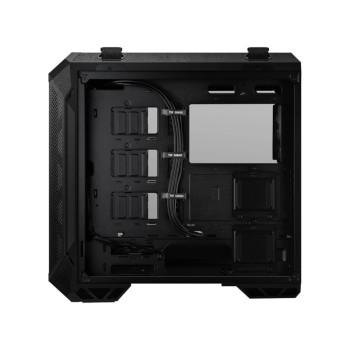

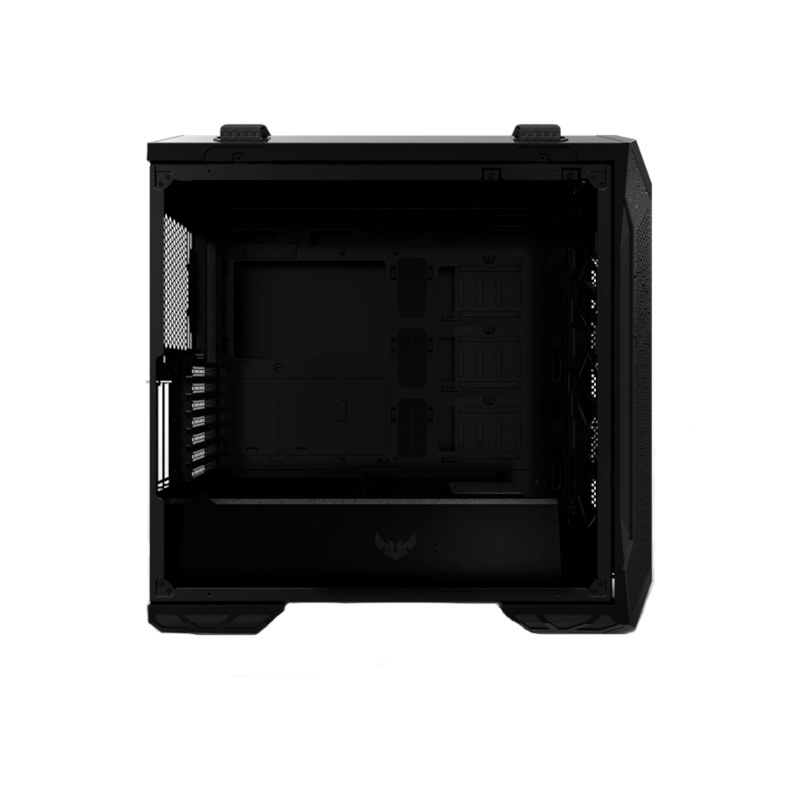

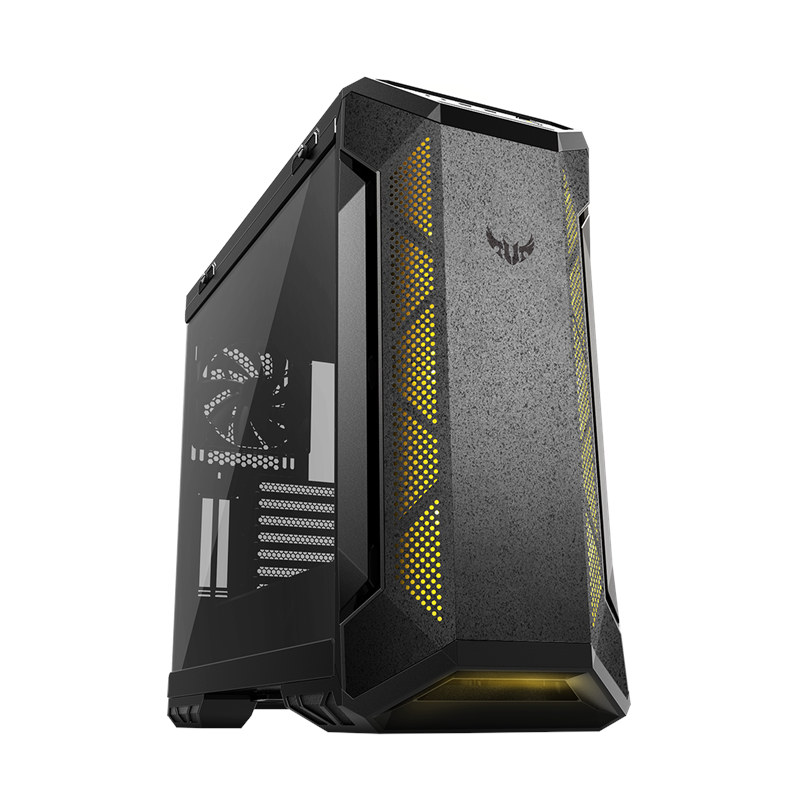

TUF Gaming GT501

Case Size

Mid Tower

Motherboard Support

EATX (12"x10.9")

ATX

Micro-ATX

Mini-ITX

Drive Bays

3 x 2.5" Bay

4 x 2.5"/3.5" Combo Bay

Expansion Slots

7

2 (additional vertical)

Front I/O Port

1 x Headphone

1 x Microphone

2 x USB 3.1 Gen1

Tempered Glass

Left Side

Radiator Support (Front)

120 mm

140 mm

240 mm

280 mm

360 mm

Radiator Support (Top)

120 mm

140 mm

240 mm

280 mm

360 mm

Radiator Support (Rear)

120 mm

140 mm

Cooling Support (Front)

3 x 120 mm

2 x 140 mm

Cooling Support (Top)

3 x 120 mm

2 x 140 mm

Cooling Support (Rear)

1 x 120 mm

1 x 140 mm

Pre-installed Fans (Front)

3 x 120 mm RGB

Pre-installed Fans (Rear)

1 x 140 mm PWM

Maximum CPU Cooler Height

180 mm

Maximum GPU Length

420 mm

Maximum PSU Length

240 mm

Removable Dust Filters

Front

Top

Bottom

Maximum Cable Management Space

30 mm

Dimensions

552 x 251 x 545 mm

Weight

10.5Kg

AURA Sync

RGB

Warranty

1 Year

Note*

Price, feature and specifications are subject to change without notice
