Application For

Intel: LGA1700/1200/1151/1150/1155

AMD: AM5/ AM4

Model

R-LE520-WHAMMN-G-1

Net Weight

1238 g

Radiator Dimensions

282×120×27 mm

Radiator Material

Aluminum

Tube length

410 mm

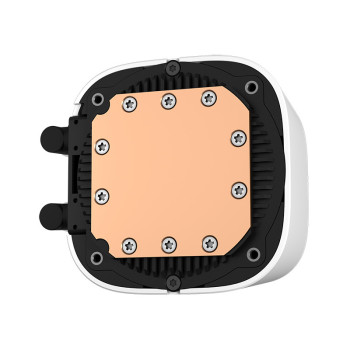

Pump Dimensions

91×80×52 mm

Pump Speed

2400 RPM±10%

Pump Noise

17.8 dB(A)

Pump Connector

3-pin

Pump Rated Voltage

12 VDC

Pump Rated Current

0.2 A

Pump Power Consumption

2.4 W

Fan Dimensions

120×120×25 mm

Fan Speed

500~2250 RPM±10%

Fan Airflow

85.85 CFM

Fan Air Pressure

3.27 mmAq

Fan Noise

≤32.9 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Hydro Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.25 A

Fan Power Consumption

3.0 W

LED Type

Addressable RGB LED

LED Connector

3-pin(+5V-D-G)

LED Rated Voltage

5 VDC

LED Power Consumption

2.25 W（PUMP）/ 2.1 W（FAN×2）

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
