Application For

Intel: LGA2066/ 2011-v3/ 2011/ 1700/ 1200/ 1151/ 1150/ 1155

AMD: sTRX4/ sTR4/ AM5/ AM4

Model

R-LS520-BKAMNT-G-1

Net Weight

1305 g

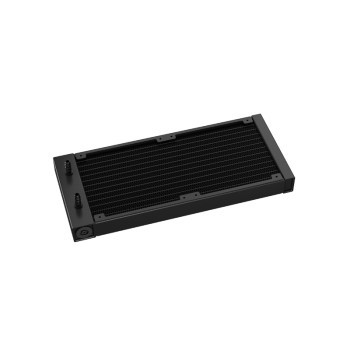

Radiator Dimensions

282×120×27 mm

Radiator Material

Aluminum

Tube length

410 mm

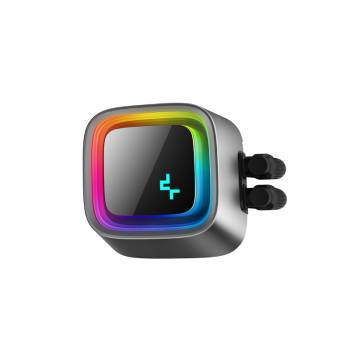

Pump Dimensions

86×74×57 mm

Pump Speed

3100 RPM±10%

Pump Noise

19 dB(A)

Pump Connector

3-pin

Pump Rated Voltage

12 VDC

Pump Rated Current

0.47 A

Pump Power Consumption

5.64 W

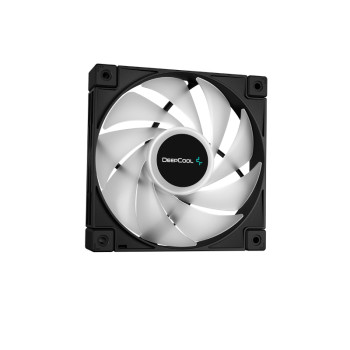

Fan Dimensions

120×120×25 mm

Fan Speed

500~2250 RPM±10%

Fan Airflow

85.85 CFM

Fan Air Pressure

3.27 mmAq

Fan Noise

≤32.9 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Fluid Dynamic Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.29 A

Fan Power Consumption

3.48 W

LED Type

Addressable RGB LED

LED Connector

3-pin(+5V-D-G)

LED Rated Voltage

5 VDC

LED Power Consumption

2.2 W（PUMP）/ 3.6 W（FAN×2）

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
