Application For

Intel: LGA1700/1200/1151/1150/1155

AMD: AM5/AM4

Model

R-LS720-WHAMMM-G-1

Net Weight

1659 g

Radiator Dimensions

402×120×27 mm

Radiator Material

Aluminum

Tube length

410 mm

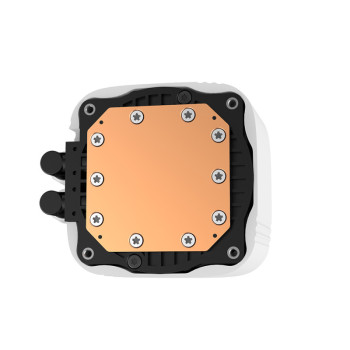

Pump Dimensions

85×73×55 mm

Pump Speed

3100 RPM±10%

Pump Noise

19 dB(A)

Pump Connector

3-pin

Pump Rated Voltage

12 VDC

Pump Rated Current

0.38 A

Pump Power Consumption

4.56 W

Fan Dimensions

120×120×25 mm

Fan Speed

500~2250 RPM±10%

Fan Airflow

85.85 CFM

Fan Air Pressure

3.27 mmAq

Fan Noise

≤32.9 dB(A)

Fan Speed (with LSP)

500~1600 RPM±10%

Fan Airflow (with LSP)

60.85 CFM

Fan Air Pressure (with LSP)

1.65 mmAq

Fan Noise (with LSP)

≤28.2 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Hydro Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.25 A

Fan Power Consumption

3.0 W

LED Type

Addressable RGB LED

LED Connector

3-pin(+5V-D-G)

LED Rated Voltage

5 VDC

LED Power Consumption

2.7 W（PUMP）/ 3.15W（FAN×3）

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
