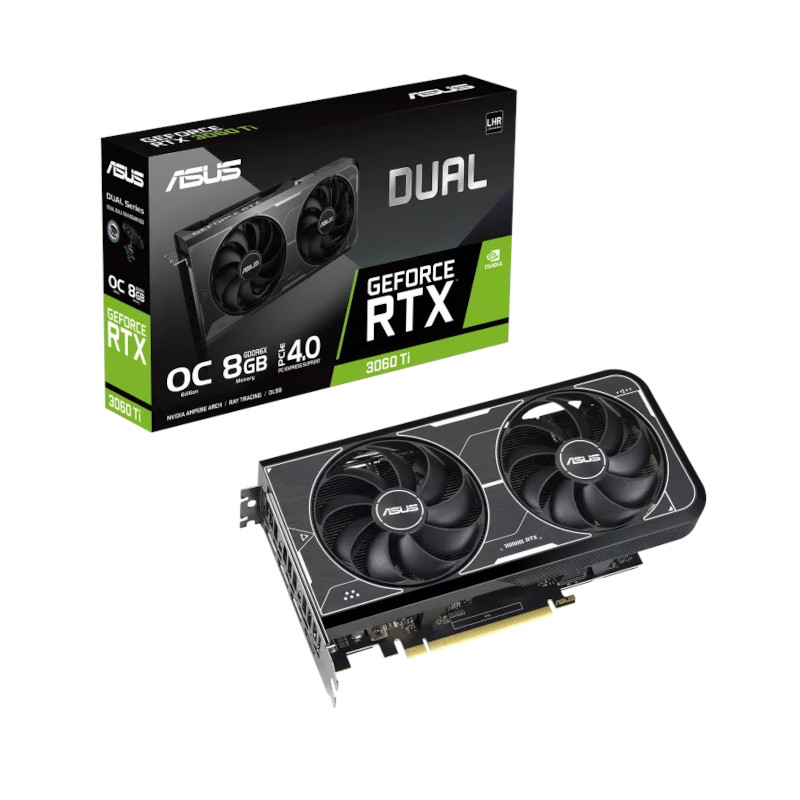

ASUS Dual GeForce RTX 3060 Ti OC Edition 8GB GDDR6X
DUAL-RTX3060TI-O8GD6X
ASUS Dual GeForce
RTXTM 3060 Ti OC Edition 8GB GDDR6X with two powerful Axial-tech fans and a
2-slot design for broad compatibility
- NVIDIA Ampere
Streaming Multiprocessors: The building blocks for the world’s fastest, most
efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and
improved power efficiency.
- 2nd Generation RT
Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and
shading for a whole new level of ray tracing performance.
- 3rd Generation
Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced
AI algorithms such as DLSS. These cores deliver a massive boost in game
performance and all-new AI capabilities.
- OC edition: Boost
Clock 1710 MHz (OC Mode)/1680 MHz(Default Mode)

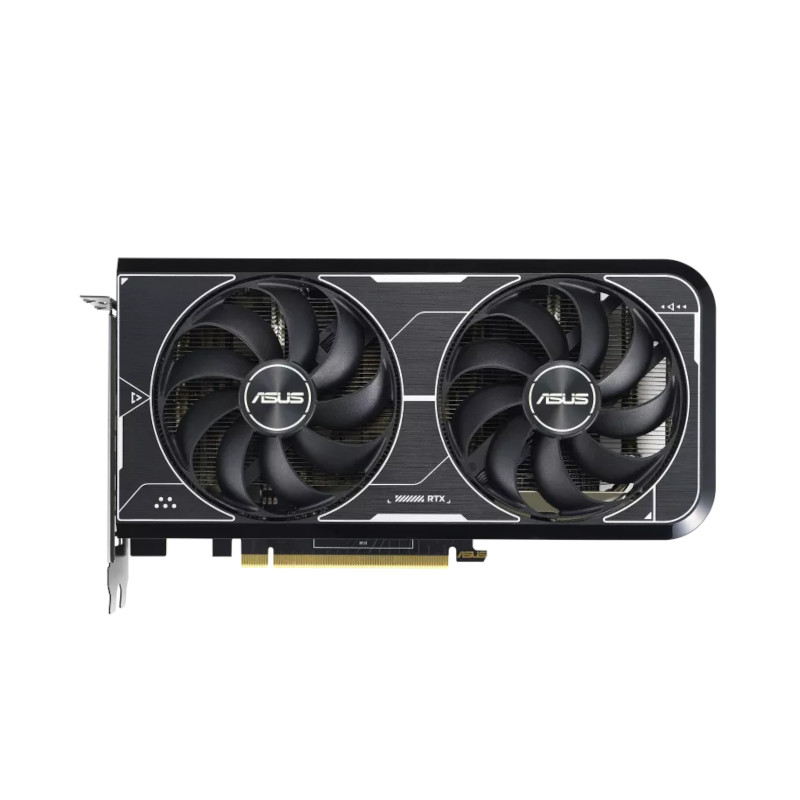

- Axial-tech fan
design features a smaller fan hub that facilitates longer blades and a barrier
ring that increases downward air pressure.
- A 2-slot design
maximizes compatibility and cooling efficiency for superior performance in
small chassis.
- 0dB Technology lets
you enjoy light gaming in relative silence.
- Dual ball fan
bearings can last up to twice as long as sleeve bearing designs.
- A stainless steel
bracket is harder and more resistant to corrosion.
Specification | |
Graphics
engine | NVIDIA® GeForce RTX™ 3060 TI |
Bus standard | PCI Express 4.0 |
Opengl | OpenGL®4.6 |
Video memory | 8GB GDDR6X |
Engine clock | OC mode : 1710 MHz (Boost Clock) Default mode : 1680 MHz (Boost Clock) |
Cuda core | 4864 |
Memory Speed | 19 Gbps |
Memory interface | 256-bit |
Resolution | Digital Max Resolution 7680 x 4320 |

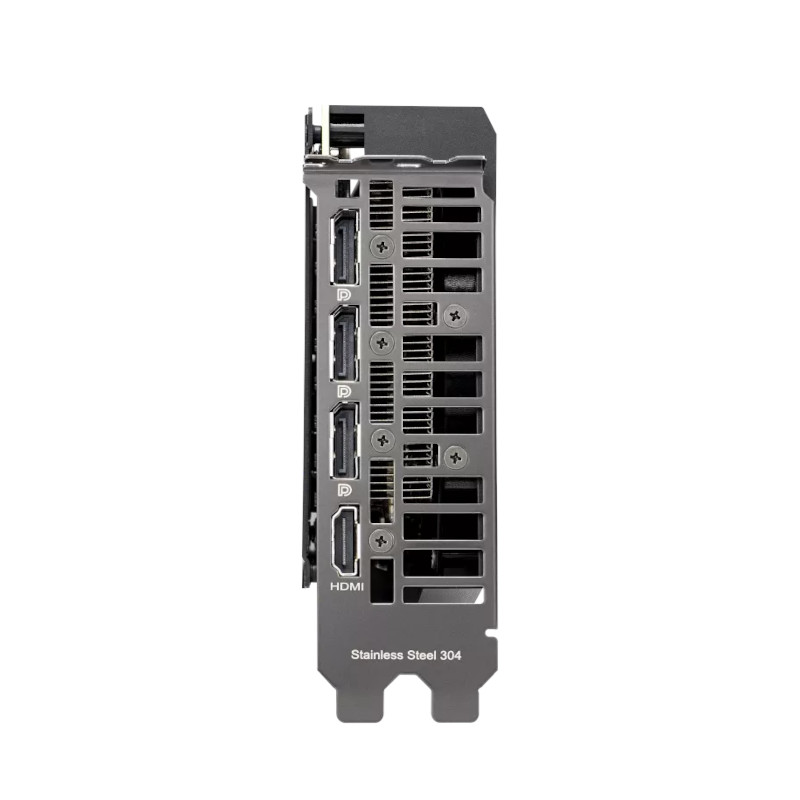

Interface | Yes x 1 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
Maximum Display Support | 4 |
NVlink/ Crossfire Support | No |
Accessories | 1 x Collection card 1 x Speedsetup manual |
Software | ASUS GPU Tweak III & GeForce Game Ready
Driver & Studio Driver: please download all software from the support
site |
Recommended power supply | 750W |
Dimensions | 230 x 120 x 42 mm 9.06 x 4.72 x 1.65 inch |
Power connectors | 2 x
8-pin |
Slot size | 2 Slot |
Warranty | 3 Years |
Note* | Price,
feature and specifications are subject to change without notice. |
| GPU Chipset | NVIDIA GeForce |
| GPU Series | RTX 3060 Ti |
| Architecture | Ampere |
| Render Units | Shading Units: 4864 CUDA, TMUs: 152, ROPs: 80, SM Count: 38, RT Cores: 38, Tensor Cores: 152 |
| Clock Speeds | Boost Clock (OC Mode): 1710 MHz, Boost Clock (Gaming Mode): 1680 MHz, Memory Clock: 19 Gbps |
| Memory Capacity & Type | 8 GB GDDR6X |
| Memory Interface & Bandwidth | 256 bit, 448 GB/s |
| Bus Standard | PCIe Version 4.0 x16 |
| Display Outputs | HDMI: 2.1 x1, DisplayPort: 1.4a x3 |
| Slot & Cooling Solution | Dual Slot - Dual Fan |
| Power Requirments | Suggested PSU: 750 W, Power Connectors: 8-Pin x2 |
